PAiA Fatman

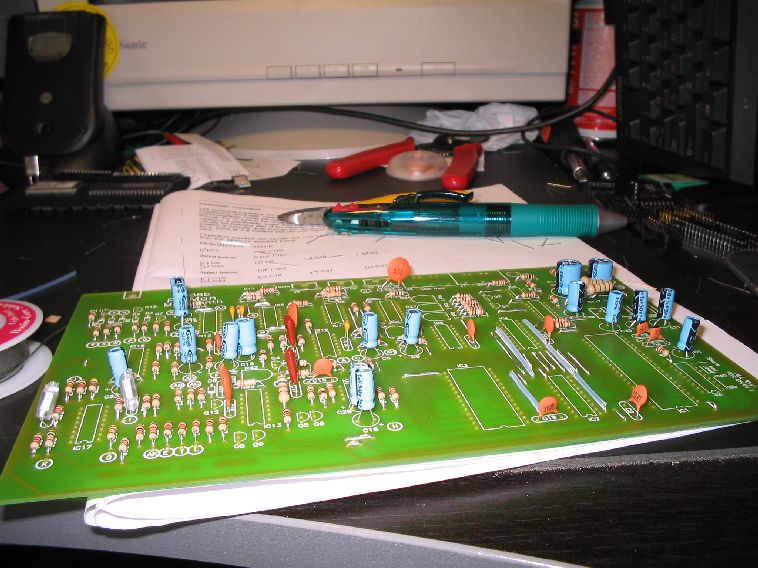

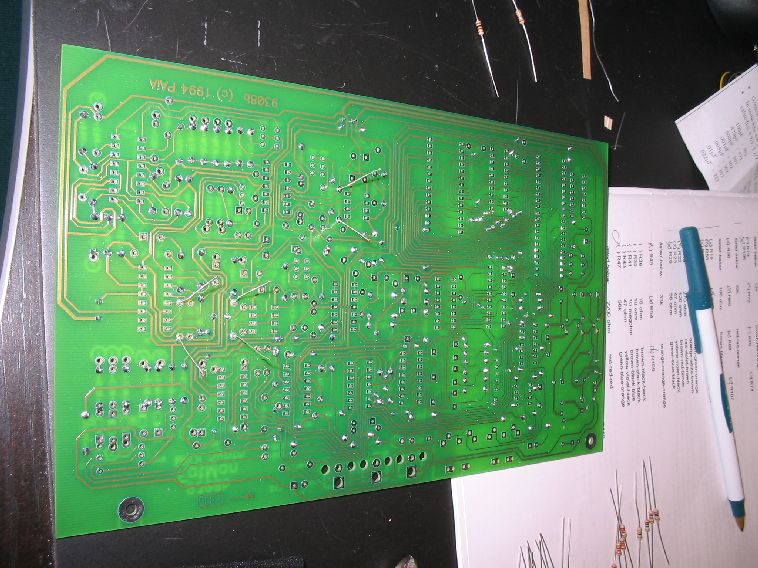

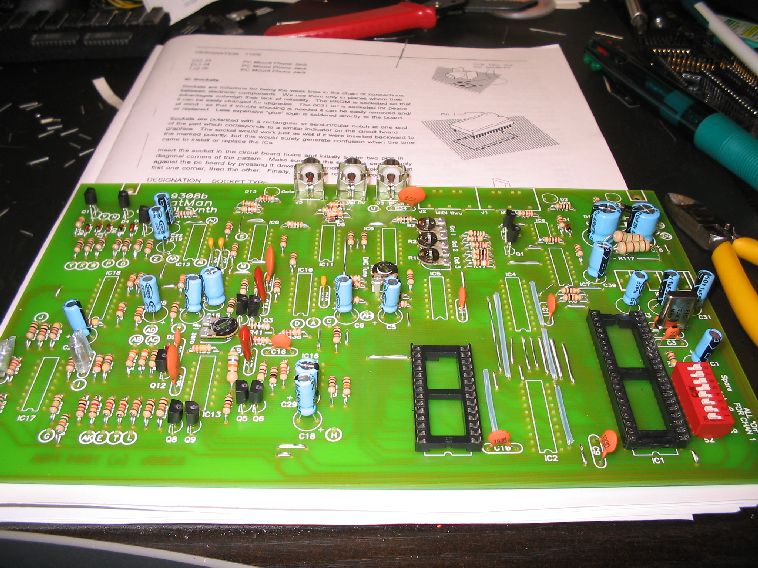

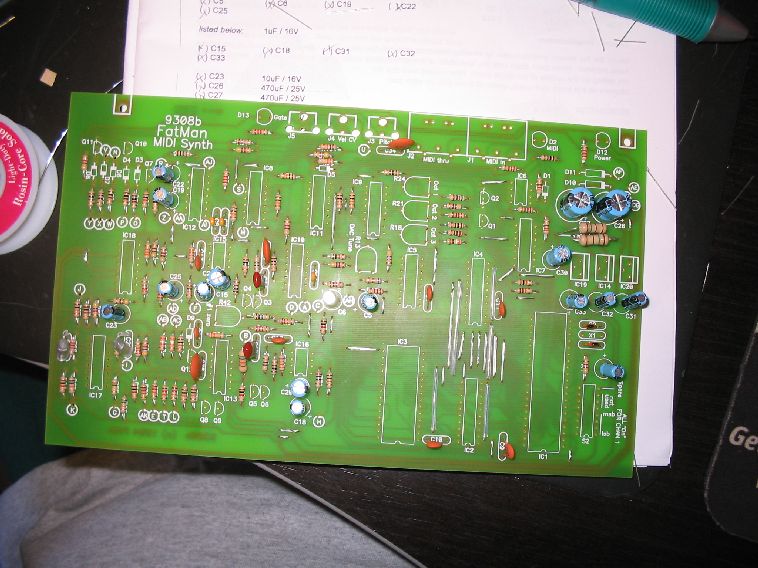

This was a Christmas present to myself. So far one of the more comlpicated things I've worked on electronics wise. Even though its a kit, there is still a ton of work to do. It's pretty much built, but I'm having some problems with it. I'm pretty sure I've screwed up the wiring for the front panel, somewhere in the pitch section. Point to point wiring 18 pots is a hell of a task. I hope to have it fixed soon, and installed in my mixer case.






E

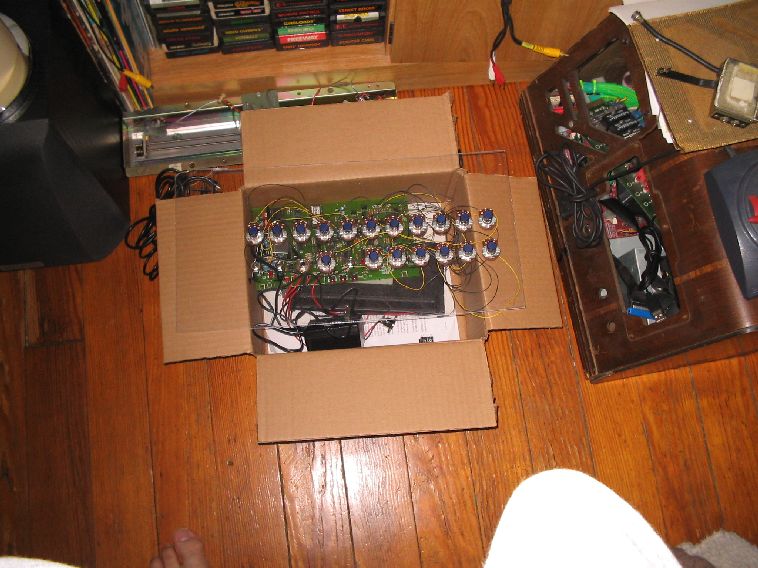

It's current home . . . . not too glorious I know, but its functional. The plexiglass front panel is a temporary fix, just so I dont have all those pots flopping all over the place.
